What is needed to change a solid into a liquid?
Energy or heat
In this section we are going to make more solutions. We will perform some experiments to see if we can make our solutes dissolve faster. Before we do that, we have to answer an important question: is melting and dissolving the same? What do you think?
The difference between melting and dissolving is very relevant, and mistaking dissolving for melting is a pervasive misconception at this stage of the learners' development.
In this activity we are going to explore the differences between melting and dissolving. We have learnt that matter can exist as 3 different states: solid, liquid and gas.
INSTRUCTIONS (Part 1)
Watch the following short video clip to remind yourself how a solid, liquid and gas are different from each other. You should look out for the part where the states change. The solid changes to a liquid and then the liquid changes into a gas. Remember that a state change is when a substance changes from one state (i.e. solid) to another state (i.e. liquid).
http://www.youtube.com/watch?v=-CwnAxylyFo&feature=relatedThe following picture shows how the different states of matter are related to each other. It also shows what the different state changes are called.
QUESTIONS:
What is needed to change a solid into a liquid?
Energy or heat
What is the process called when a solid changes into a liquid?
Melting
The particles in a _____ have fixed positions. When the solid melts, the particles are free to move from their positions. The state in which particles are close to each other but free to move around is called the _____ state.
Answers: solid, liquid
INSTRUCTIONS (Part 2)
Do you remember dissolving sugar in water in the previous chapter?

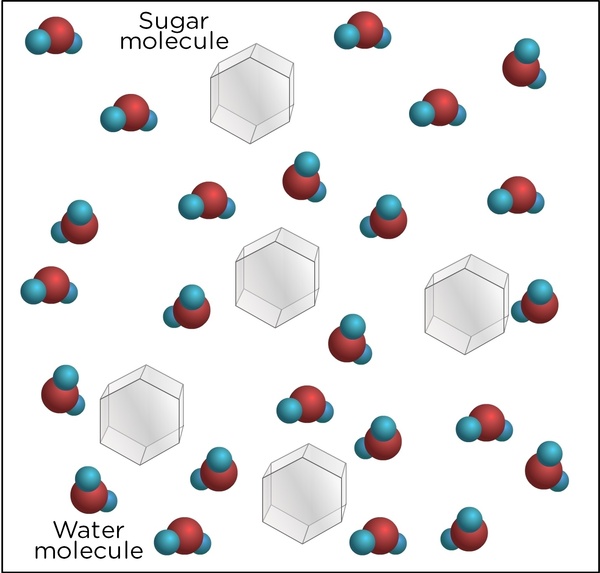

The following picture shows what we would see if we could shrink ourselves down to the size of water and sugar particles (molecules).
Look carefully at the picture and then answer the following questions.
QUESTIONS:
Why is the sugar no longer visible? Give a reason.
The sugar does not disappear. It is not visible anymore as the sugar crystals have broken up into the individual sugar molecules, which we cannot see with the naked eye.
How can we be sure the sugar has not "disappeared" and that it is still there?
We can get the sugar back in crystal form by evaporating all the water away.
How is the picture of the sugar and water mixture different from the picture of the liquid which is shown below?
The picture of the sugar and water has two kinds of particles. The picture of the liquid only has one kind of particle.
What do we call it when we have two or more substances combined?
A mixture.
Can we say that the sugar melts? Give a reason.
No, the sugar does not melt. The sugar particles are free, but they are mixed with the water.
Explanation of new words:
This section offers a great opportunity for learners to experience aspects of scientific experimentation that are a little more advanced than what they have done thus far. You could talk about controlling variables (changing just one variable in a set, and keeping all the others constant), and how to identify the independent and dependent variables. They will also be introduced to coming to a conclusion at the end of an investigation. Finally, they are introduced to the kinetic molecular model of matter when they learn that particles move faster when they are given energy (just like children!) and when they are moving faster they collide more, which speeds up dissolving. All of this provides a solid foundation for building a more complex understanding of these concepts in later years.
The rate of dissolving refers to how quickly a solute dissolves in a solvent. The word "rate" has many meanings. In science, when we use the word "rate" we usually mean how fast or how slow.
Tom likes his coffee sweet, with 3 teaspoons of sugar. For the coffee to taste sweet, the sugar must be dissolved. Here is a picture of a cup of coffee. Answer the questions that follow.
Is the cup of coffee a mixture? Give a reason.
Yes, because it is a combination of different substances.
Is the cup of coffee a solution? Give a reason.
No, it is not a solution as a whole. The milk is suspension, as it is cloudy, and does not dissolve in the water. The coffee granules are an infusion in the water. However, the sugar does dissolve in the water and this forms a solution.
Teacher note: This might be hard for learners to answer, but it is important to note here that "cloudiness" implies that tiny aggregates or globules are suspended in the liquid or gas base. Transparency implies the particles of the substances are separated from each other and dissolved. So the milk is a suspension and not a solution in the water.
Make a list of the components in the coffee mixture.
Coffee, sugar and milk in water
Which component is the solvent?
Water
Is the sugar a solute or a solvent?
Solute
What could Tom do to make sure that the sugar dissolves quickly?
Tom could stir the coffee, Tom could use finer sugar, or Tom could stir in the sugar before the milk is added (assuming the milk is not heated).
Stirring a solution is just one of the things we can do to make a solute dissolve faster.
We are going to perform 3 investigations to explore the factors that affect the rate of dissolving of sugar (a solute) in water (a solvent).
In the first investigation, we will explore whether salt dissolves faster in hot or cold water. What do you expect?
AIM:
To investigate how temperature affects the rate of dissolving
MATERIALS AND APPARATUS:
Try to use sea salt (or any brand without "free flowing agent" - This is usually cornflour and obscures observations by forming a cloudy suspension). Alternatively, one can just use sugar here.
METHOD:
Stirring must occur at the same, regular rate for comparisons to be drawn. Let each group agree on a way to ensure this (perhaps by counting each full "stir" of the spoon).
This step should be done with the ice OUTSIDE the water used for mixing. Either very cold water from a fridge can be used, or the mixing container should be placed on a bed of crushed ice. The presence of the ice in the mixing water obviously has nothing to do with the rate of dissolution. Additionally, some of the salt may end up on top of the ice and freeze there, creating a situation where it may appear that the salt dissolved quicker in the cold water than the room temperature water.
RESULTS:
The effect of temperature on dissolving
Situation |
Time to dissolve (in seconds) |
Salt in hot water |
|
Salt in tap water |
|
Salt in ice water |
QUESTIONS:
We compared how fast salt dissolved in hot water, water at room temperature, and ice water.
Name three things that were the same about the three situations.
The amount of water we used
The amount of salt we added to the water
The amount of stirring
What did we change in this investigation?
The temperature of the water.
Teacher note: This is an opportunity to introduce the term variable (see New Words above). The variable that we change (manipulate) is called the independent variable.
We measured the temperature of the water. What else did we measure?
We measured the time it took for the salt to dissolve.
Teacher note: The variable that we measure is called the dependent variable. In this case time is the dependent variable.
In which situation did the salt dissolve the fastest?
The salt dissolved fastest in the hot water
CONCLUSION:
The salt crystals dissolved _____ in the hot water than the cold water. Temperature affects the rate of dissolving. When we increase the temperature of the solvent, the rate at which the solute dissolves _____.
Answer: faster, increases.
Extension question: Why do you think the salt dissolves faster in the hot water?
Teacher note: This is an opportunity to bring the energy concept into the conversation. Children move faster when they have more energy! Particles also move faster when they have more energy. When a solute dissolves in a solvent, the solute particles spread out among the solvent particles. This process happens much faster when all the particles are moving faster.
In the second investigation we will explore whether coarse salt dissolves faster than fine salt. What do you expect?
To investigate how grain size affects the rate of dissolving
MATERIALS AND APPARATUS:
METHOD:
RESULTS:
The effect of grain size on dissolving
Situation |
Time to dissolve (in seconds) |
Fine salt in water |
|
Coarse salt in water |
QUESTIONS:
We compared which dissolved faster in water, fine salt or coarse salt.
Name three things that were the same about the three situations.
The amount of water we used
The temperature of the water
The amount of stirring
What did we change in this investigation?
The grain size of the salt
Teacher note: Here, you should explain the term 'grain size' by pointing out the differences in the sizes of the salt crystals. You should also try to convey that the same quantity (mass) of table salt would contain more grains if the grains were smaller.
Another opportunity to introduce the term variable (see New Words above). The variable that we change (manipulate) is called the independent variable.
What did we measure?
We measured the time it took for each type of salt to dissolve.
Teacher note: The variable that we measure is called the dependent variable. In this case the dependent variable is time, and the independent variable is grain size.
Which type of salt dissolved faster?
The fine salt dissolved faster.
CONCLUSION:
The fine salt dissolved _____ than the coarse salt. Grain size affects the rate of dissolving. When we increase the grain size of the solute, the rate at which the solute dissolves _____.
Answer: faster, decreases.
Extension question: Why do you think the fine salt dissolves faster than the coarse salt?
Teacher note: This is an opportunity to bring the concept of surface area into the conversation.
Ask the learners to say which would contain more grains, a teaspoon of fine salt or a teaspoon of coarse salt.
Sketch the following two scenarios:
This is roughly similar to the effect of smaller grain size, the more grains we have, the faster the solute particles can be 'carried away' by the solvent particles.
In the third investigation we will explore whether salt dissolves faster in water when it is stirred. What do you expect?
In this investigation, the learners must come up with their own method (experimental design) to test whether stirring has an effect. You must provide the equipment. They can then look at the diagram of the setup and note what materials and apparatus they will need. After completing the investigation, they must also write out a method themselves. Learners can work in groups to do this.
In this investigation, you are going to design your own experiment to answer the question. Use your knowledge of the previous two investigations to help you. Look at the materials and apparatus that have been provided, as well as the diagram, to design your investigation and then write it out in the spaces below.
To investigate how stirring affects the rate of dissolving
MATERIALS AND APPARATUS:
Make a list of what you will need to complete this investigation:
METHOD:
Write out the steps that you will follow to complete the investigation. Remember to include measurements.
RESULTS:
The effect of stirring on dissolving
Situation |
Time to dissolve (in seconds) |
Salt in water (with stirring) |
|
Salt in water (without stirring) |
QUESTIONS:
We compared which dissolved faster in water, a salt solution that is stirred or a salt solution that is not stirred.
Name 3 things that were the same about the 3 situations.
The amount of water we used
The temperature of the water
The amount of salt we used
What did we change in this investigation?
We investigated whether or not the mixture was stirred.
What made the salt dissolve faster: stirring, or not stirring?
The salt in the stirred solution dissolved faster.
CONCLUSION:
The mixture that was stirred dissolved _____ than the mixture that was not stirred. Stirring affects the rate of dissolving.
Answer: faster
Extension question: Why do you think stirring makes the salt dissolve faster?
Particles move faster when they are stirred. When a solute dissolves in a solvent, the solute particles spread out among the solvent particles. This process happens much faster when all the particles are moving faster.
What are the three factors that affect solubility? Write a sentence describing how they affect solubility.
The three factors that affect solubility are temperature, grain size and stirring. Increasing the temperature increases solubility, decreasing the grain size increases solubility and stirring increases solubility.
Write 3 examples where we use the factors that affect dissolving in our daily lives.
Any appropriate examples will do, for instance:
stirring tea or coffee to make the sugar dissolve
heating water to make salt dissolve when cooking; and
using fine salt as opposed to coarse grains when dissolving in water to make a salt solution for cooking or rinsing, etc.
Use the words in the box below, and the clues that are given underneath.
soluble solute solvent dissolves stir decrease solution saturated |
DOWN:
ACROSS:
